Imperial (IM)

$0.00

Functions available:

  • IM400: Single Cylinder

  • IM410: Double Cylinder

  • IM405: Dummy

Add To Cart

    • Standard Interior Options:

      • Bala (BA)

      • Guardian (GN)

      • Olympus (OS)

      • Ruby (RB)

    • Optional Interior Options:

      • Camber (CM)

      • Escort (ET)

      • Juran (JU)

      • Manhattan (MA)

      • Palmer (PA)

      • Royal (RY)

      • Shelby (SY)

    • Contemporary Interior Options:

      • Austin (AT)

      • Hollywood (HW)

      • Soho (SHR - Round Rosette + SHQ - Square Rosette)

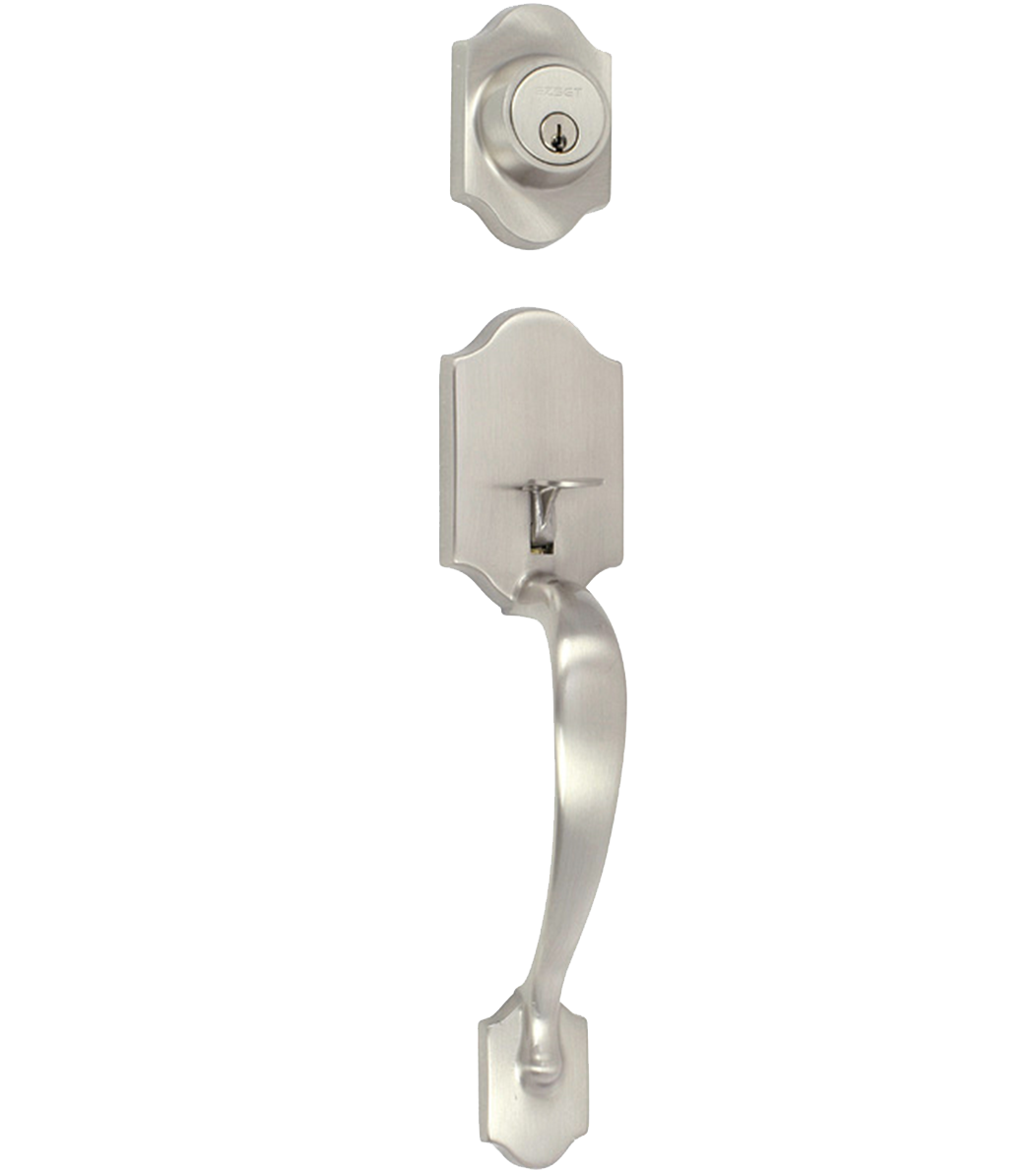

    • Satin Nickel (US15)

    • Polished Chrome (US26)

    • Venetian Bronze (US12P)

    • Matte Black (US19)

SPECIFICATIONS

Door Prep

  • 2-1/8” cross bore, 1” edge bore.

  • Mounting (Center to Center) - 5-1/2”

Backset

  • Fits both 2-3/8” and 2-3/4”.

Door Fitting

  • Handleset: 1-3/8”~1-3/4”,

  • Special Order: 2” door thickness

Exposed Trim

  • Zinc or Stainless Steel

  • Escutcheon: Zinc Alloy

Cylinder

  • KW1 standard, SC1 optional.

Latch

  • Upper deadbolt: 2-3/8” and 2-3/4” adjustable.

  • Bolt: 1” throw with hardened steel rod insert.

  • Lower handle: 2-3/8” and 2-3/4” adjustable, Bolt: 1/2” throw.

  • Faceplate: 1” x 2-1/4” round or square corner.

  • UL Latch available for both deadbolt and handle.

Strike

  • Deadbolt

    • Full lip 1-3/4” x 2-1/4” round corner (9117)

    • Rectangle 1” x 2-1/4” round corner (9113)

  • Handle: Full lip 1-3/4” x 2-1/4” round corner (9103)

    • Square corner strike available on request

Handing

  • Lever: RH for Right Hand, LH for Left Hand

  • Knob: Non-Handed
