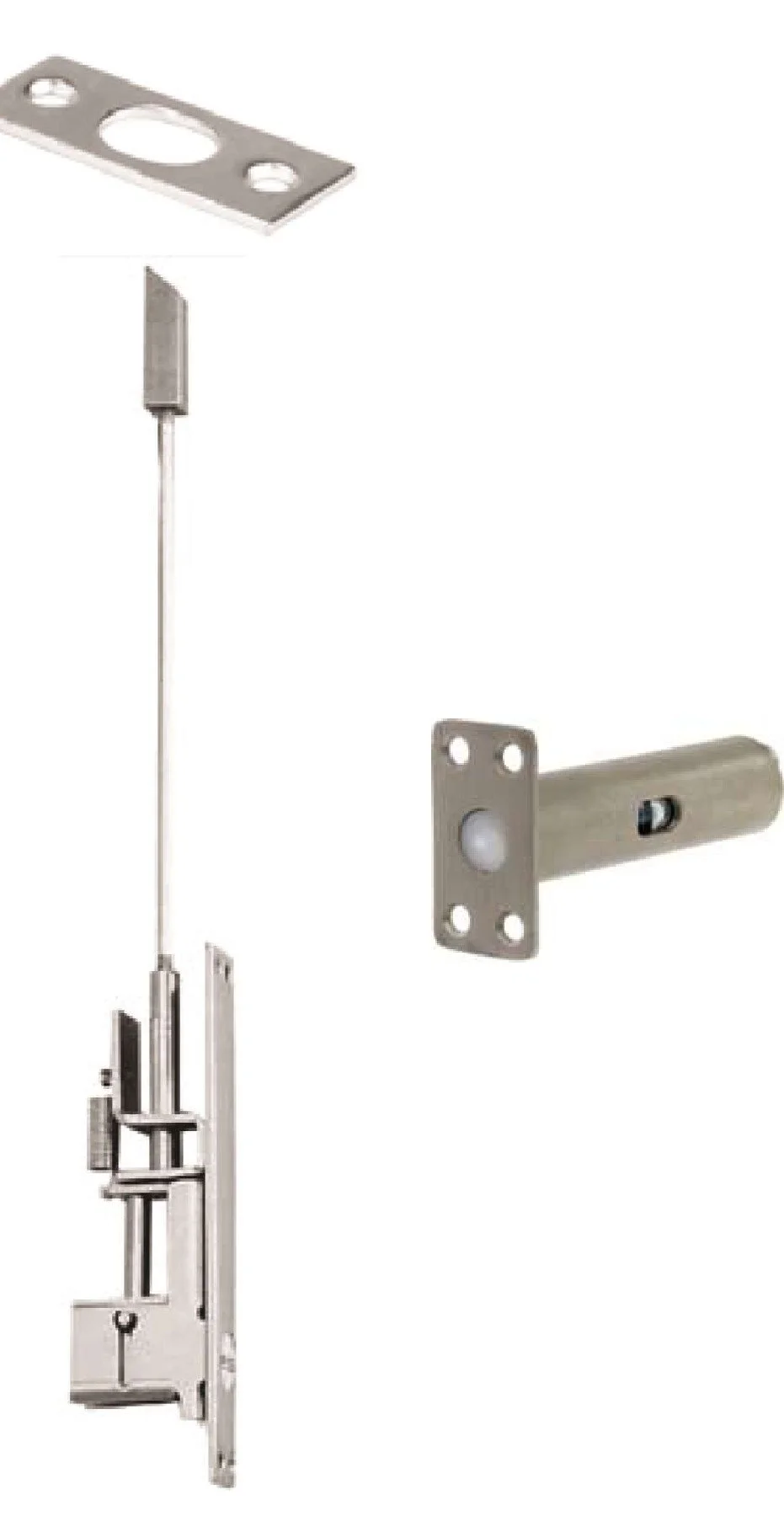

Self Latching Flush Bolt with Fire Latch - Metal Door (SFB19)

SPECIFICATIONS

Material

• Self Flush Bolt: Brass Construction with Steel Components

• 9279 Aux Fire Latch: Steel Construction with Plastic Cover

Dimensions

• Self Flush Bolt:

  • Face Plate: 1” x 6-3/4”

  • Vertical Rod Length: 12”

  • Bolt Head: 1/2” Square

  • Bolt Backset: 3/4”

  • Mortise Strike Plate: 1” x 2-1/4”

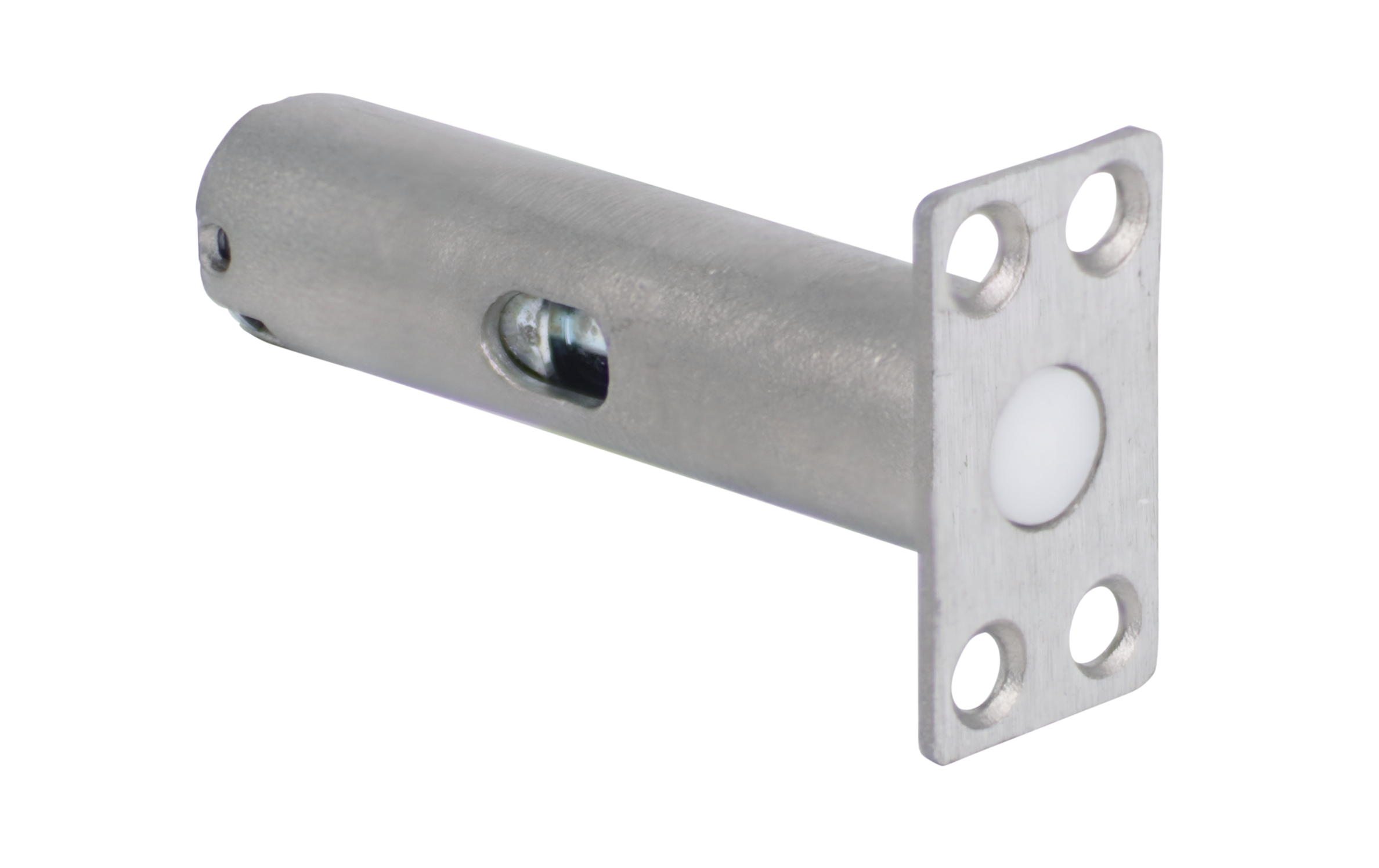

• 9279 Aux Fire Latch:

  • Face Plate: 1” x 1-3/4”

  • Bolt Size: 1”W x 1-3/4”L x 3-1/4”D

  • Bolt Diameter: 7/16”

  • Bolt Length: 1-1/2”
