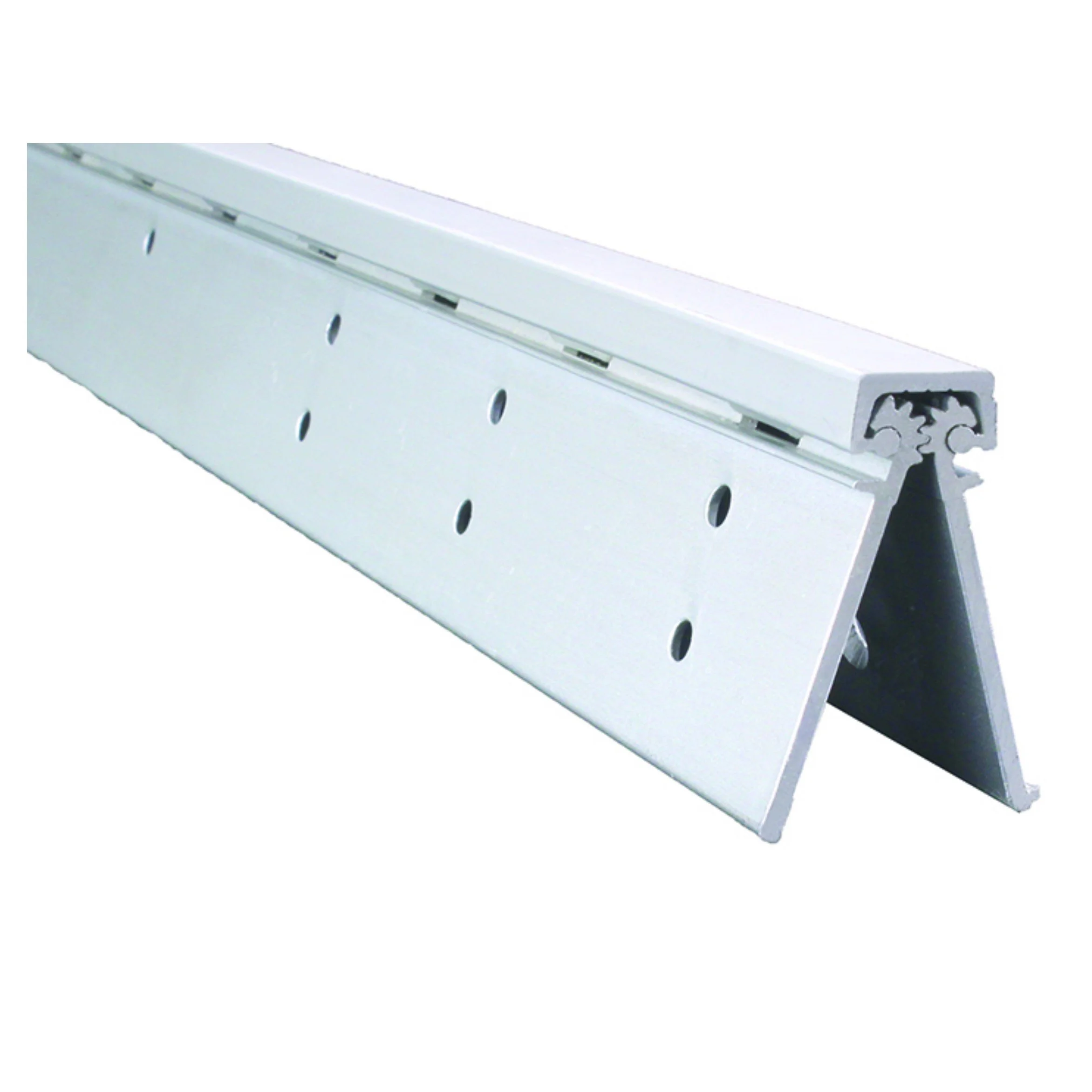

Full Mortise Concealed Gear Hinge (AGH224HD)

$0.00

with Door Edge Protection Lip

SPECIFICATION SHEET

Full Mortise Concealed Type - Concealed between rabbet of frame and hinge edge of the door

Heavy Duty for High Frequency Doors or Heavy, Medium Frequency Doors

Frame Leaf Alignment Rib for Proper Hinge and Door Location

with Door Edge Protection Lip

SPECIFICATION SHEET

Full Mortise Concealed Type - Concealed between rabbet of frame and hinge edge of the door

Heavy Duty for High Frequency Doors or Heavy, Medium Frequency Doors

Frame Leaf Alignment Rib for Proper Hinge and Door Location

  • Available Finishes:

    • AL - Clear Anodized

    • DU - Dark Bronze

    Available Length:

    • 83” (210.8cm)

    • 95” (241.3cm)

  • CLEARANCE

    • 5/16” (8mm) Hinge Side Plus Standard Lock Side Clearance

    FASTENERS

    • #12-24 × 11/16” Flat Head Self-Drill Screws

    LENGTH OPTIONS

    • Standard 83” and 95”

    • Custom Size Available

    MATERIAL

    • Aluminum 6063-T6
