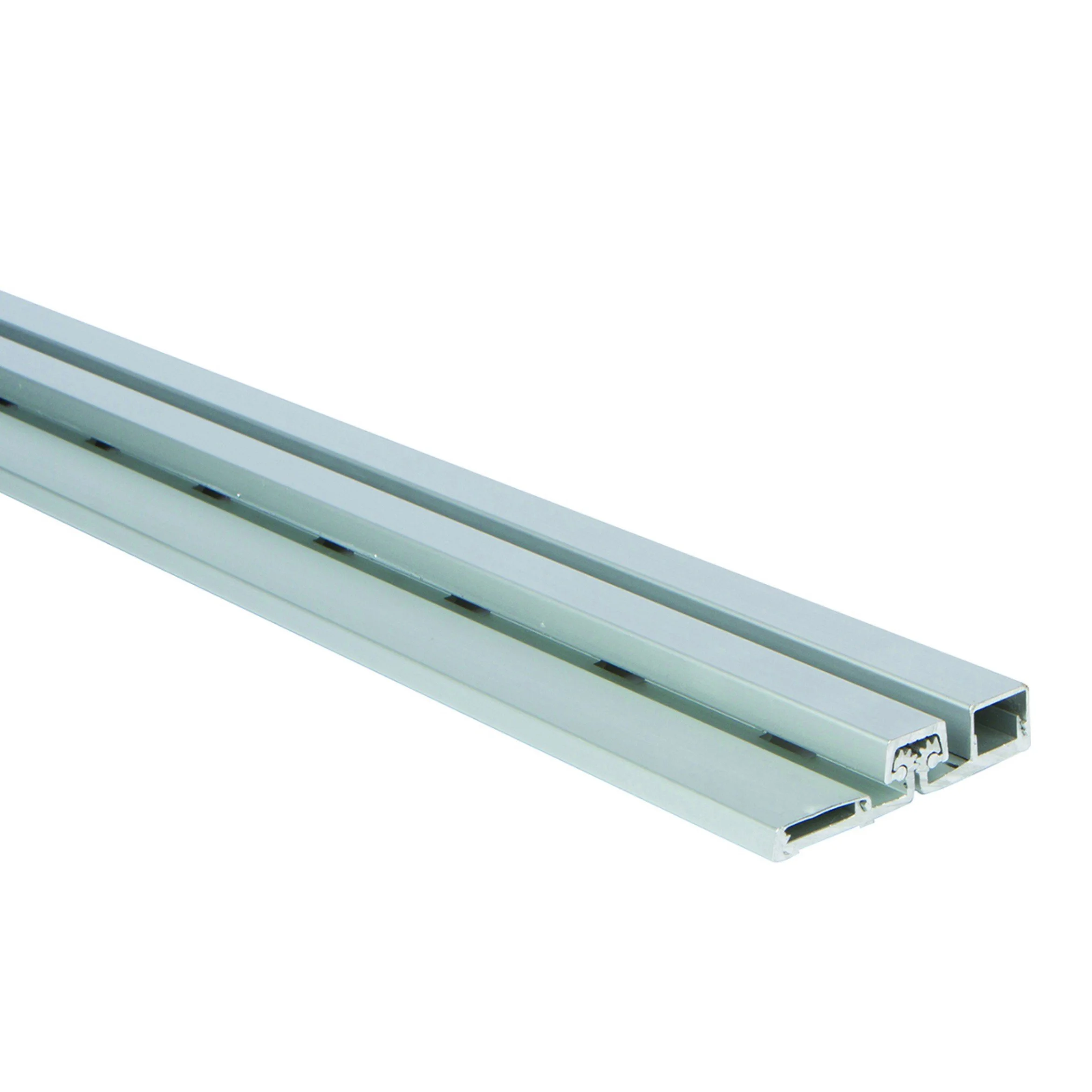

Full Surface Gear Hinge (AGH157HD)

$0.00

SPECIFICATION SHEET

Full Surface Application (Where Frame Face Dimension is Limited)

Heavy Duty for High Frequency Doors or Heavy, Medium Frequency Doors

Security Channel Covers

SPECIFICATION SHEET

Full Surface Application (Where Frame Face Dimension is Limited)

Heavy Duty for High Frequency Doors or Heavy, Medium Frequency Doors

Security Channel Covers

  • Available Finishes:

    • AL - Clear Anodized

    • DU - Dark Bronze

    Available Length:

    • 83” (210.8cm)

    • 95” (241.3cm)

  • CLEARANCE

    • 1/32” (1mm) minimum recommended for hinge side plus standard lock side clearance

    FASTENERS

    • 1/4-20 × 1-1/4” Sexbolt (Screw + Post)

    • #12-24 × 11/16” Flat Head Self-Drill Screws

    LENGTH OPTIONS

    • Standard 83” and 95”

    • Custom Size Available

    MATERIAL

    • Aluminum 6063-T6
