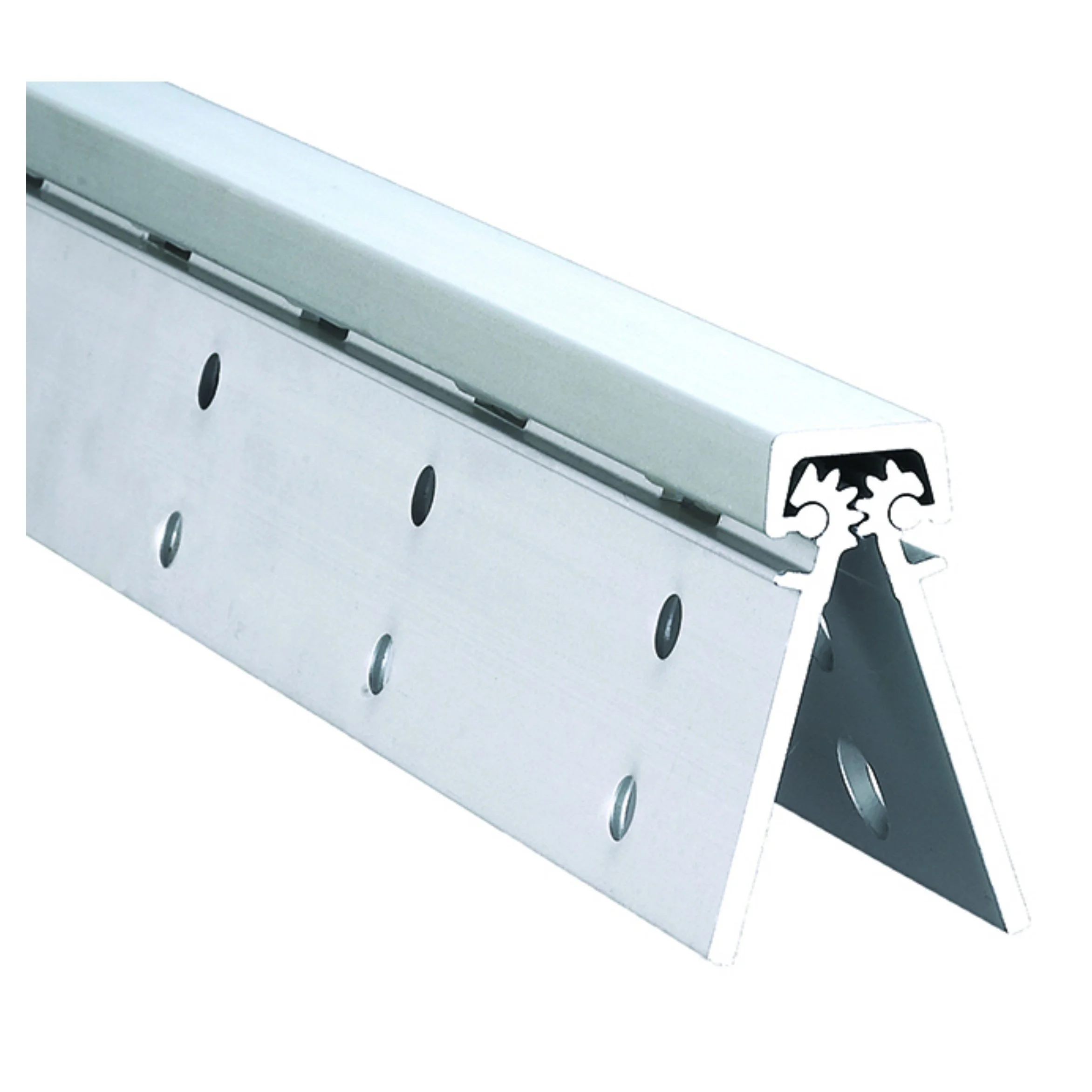

Full Mortise Concealed Gear Hinge (AGH112HD)

$0.00

SPECIFICATION SHEET

Full Mortise Concealed Type - Concealed between rabbet of frame and hinge edge of the door

Heavy Duty for High Frequency Doors or Heavy, Medium Frequency Doors

Door & Frame Leaf Alignment Rib for Proper Hinge and Door Location

SPECIFICATION SHEET

Full Mortise Concealed Type - Concealed between rabbet of frame and hinge edge of the door

Heavy Duty for High Frequency Doors or Heavy, Medium Frequency Doors

Door & Frame Leaf Alignment Rib for Proper Hinge and Door Location

  • Available Finishes:

    • AL - Clear Anodized

    • DU - Dark Bronze

    Available Length:

    • 83” (210.8cm)

    • 95” (241.3cm)

  • CLEARANCE

    • 5/16” (8mm) Hinge Side Plus Standard Lock Side Clearance

    FASTENERS

    • #12-24 × 11/16” Flat Head Self-Drill Screws

    LENGTH OPTIONS

    • Standard 83” and 95”

    • Custom Size Available

    MATERIAL

    • Aluminum 6063-T6
