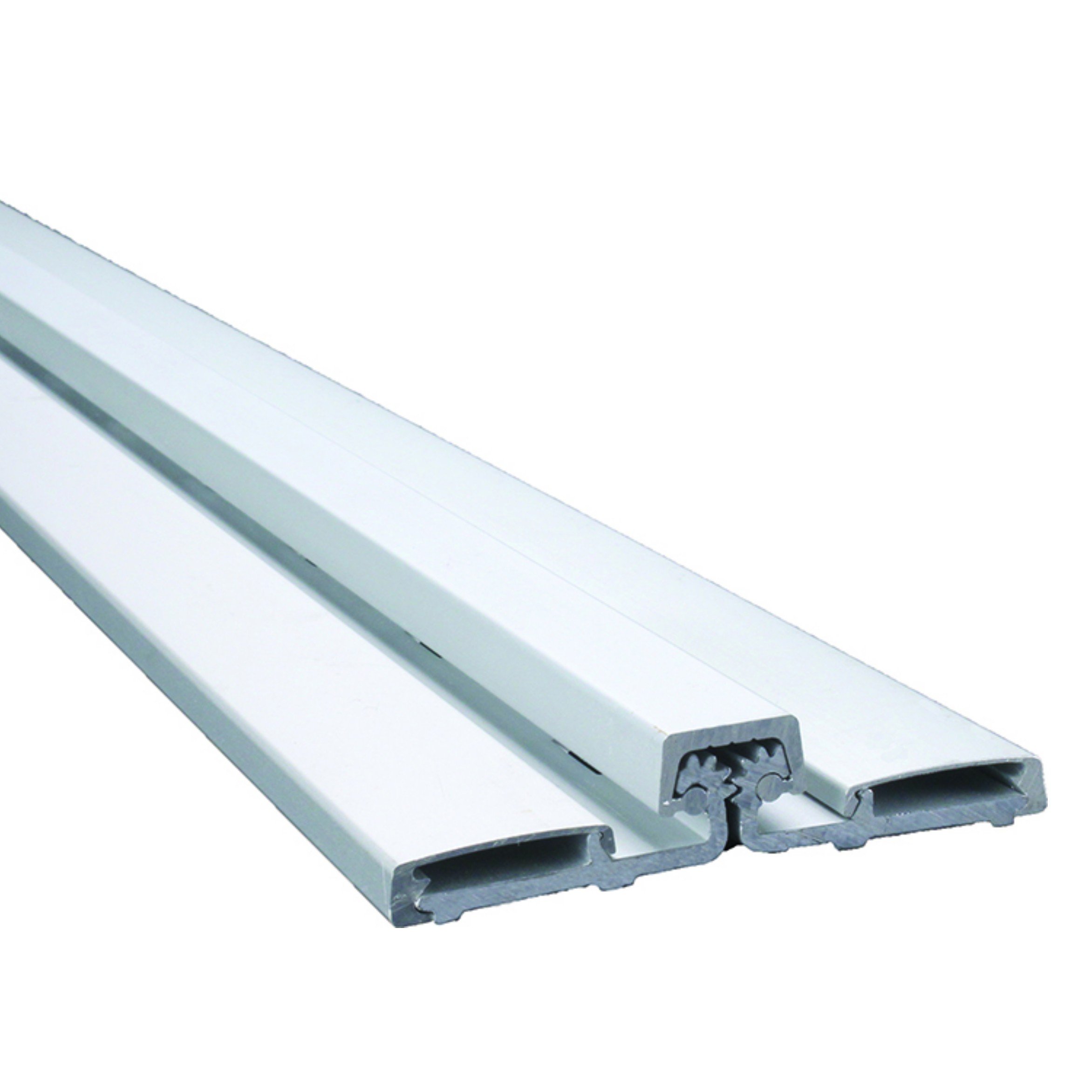

Full Surface Gear Hinge (AGH057HD)

$0.00

SPECIFICATION SHEET

Full Surface Application

  • Bi-Fold Application

Heavy Duty for High Frequency Doors or Heavy, Medium Frequency Doors

Security Channel Covers

SPECIFICATION SHEET

Full Surface Application

  • Bi-Fold Application

Heavy Duty for High Frequency Doors or Heavy, Medium Frequency Doors

Security Channel Covers

  • Available Finishes:

    • AL - Clear Anodized

    • DU - Dark Bronze

    Available Length:

    • 83” (210.8cm)

    • 95” (241.3cm)

  • CLEARANCE

    • 1/32” (1mm) minimum recommended for hinge side plus standard lock side clearance

    FASTENERS

    • 1/4-20 × 1-1/4” Sexbolt (Screw + Post)

    • #12-24 × 11/16” Flat Head Self-Drill Screws

    LENGTH OPTIONS

    • Standard 83” and 95”

    • Custom Size Available

    MATERIAL

    • Aluminum 6063-T6
