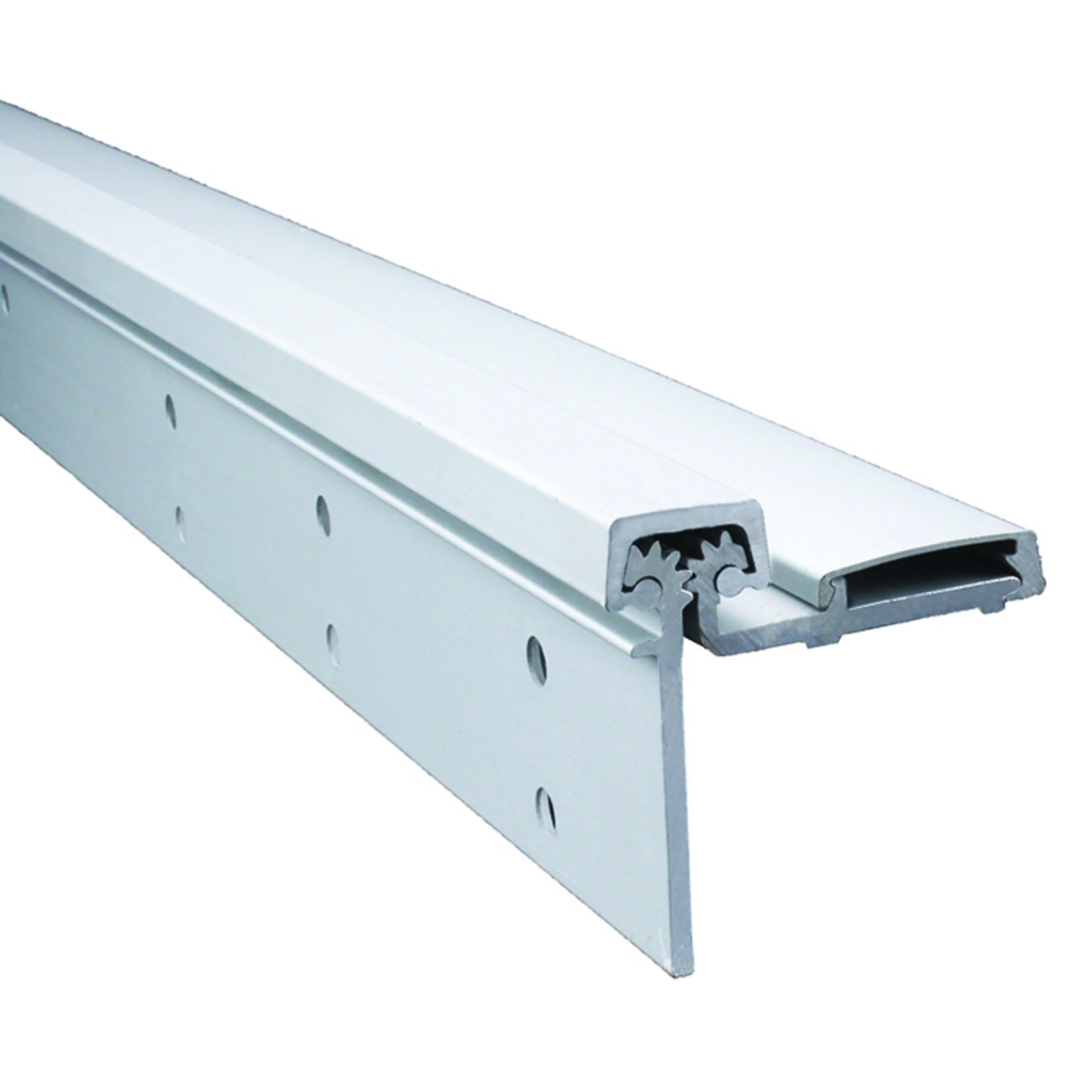

Half Surface Gear Hinge (AGH053HD)

$0.00

SPECIFICATION SHEET

Half Surface Application

  • Frame Leafe Alignment Rib for Proper Hinge Location

Heavy Duty for High Frequency Doors or Heavy, Medium Frequency Doors

Security Channel Covers

1/8” (3 mm) Inset

SPECIFICATION SHEET

Half Surface Application

  • Frame Leafe Alignment Rib for Proper Hinge Location

Heavy Duty for High Frequency Doors or Heavy, Medium Frequency Doors

Security Channel Covers

1/8” (3 mm) Inset

  • Available Finishes:

    • AL - Clear Anodized

    • DU - Dark Bronze

    Available Length:

    • 83” (210.8cm)

    • 95” (241.3cm)

  • CLEARANCE

    • 5/32” (4mm) minimum recommended for hinge side plus standard lock side clearance

    FASTENERS

    • 1/4-20 × 1-1/4” Sexbolt (Screw + Post)

    • #12-24 × 11/16” Flat Head Self-Drill Screws

    LENGTH OPTIONS

    • Standard 83” and 95”

    • Custom Size Available

    MATERIAL

    • Aluminum 6063-T6
